S O L A R C H A R G E C O N T R O L L E R

SUNXTRACTOR

Name: SunXtractor Solar MPPT Charge Controller
Brand: Alloy Charge

Distributed MPPT
Solar Charge Controller

Harvest more power from every panel,
even in cloudy and shaded conditions.

Higher
Energy Yield

Excellent
Shading Performance

Flexible
Panel Selection

Scalable
Architecture

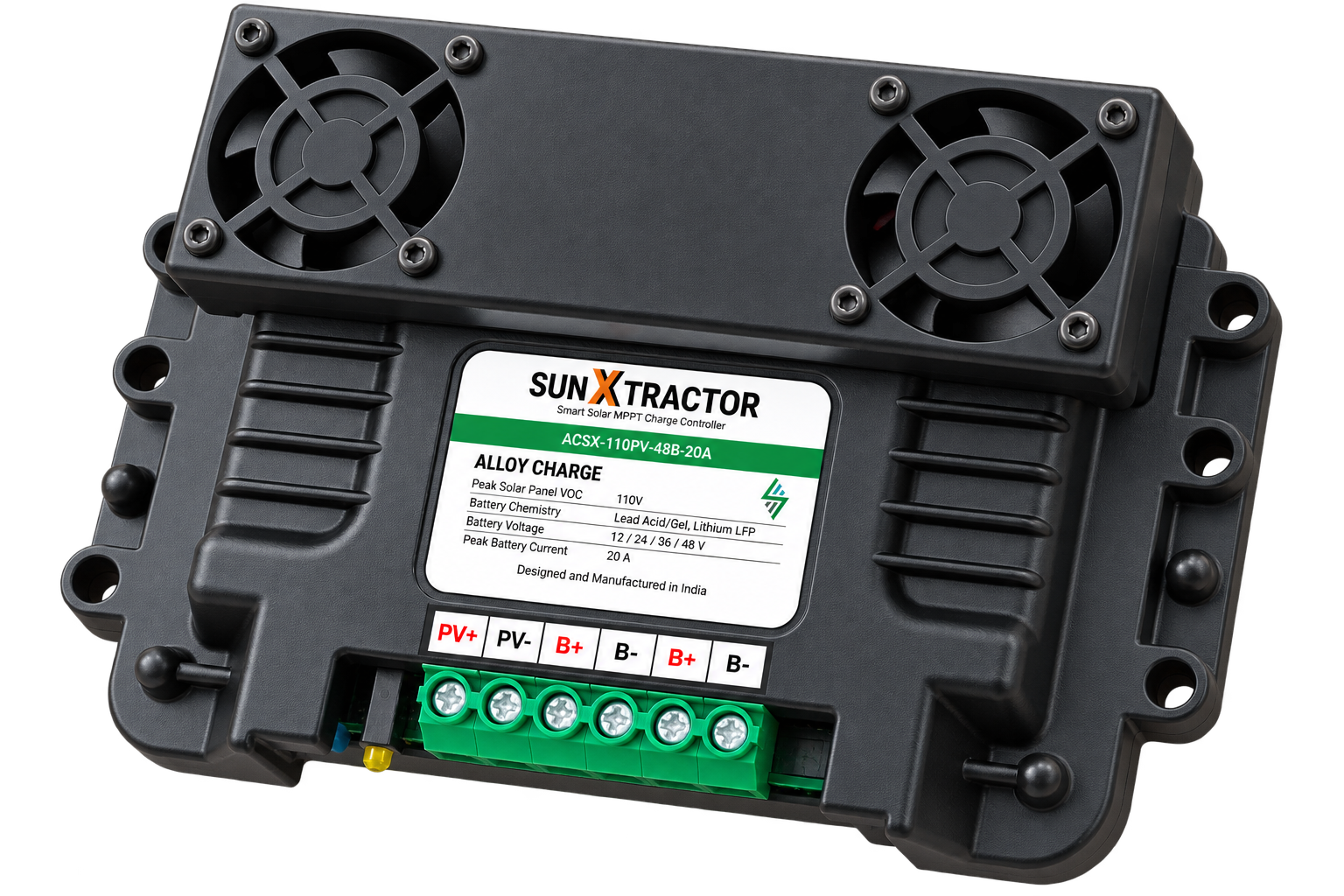

SunXtractor MPPT Solar Charge Controller

K E Y S A D V A N T A G E S

Engineered for
Real-World Performance

Higher Energy Yield

Extracts maximum power from each panel, increasing daily energy production.

Excellent Shading
and Cloudy-Day Performance

Unaffected by shading on other panels. Generates more power in low-light conditions compared to string-based solutions.

Flexible Panel Selection

Supports panels with different wattages and orientations in the same system.

Scalable Architecture

Easily add more panels and SunXtractors as your energy needs grow.

H O W I T W O R K S

Panel-Level MPPT
for Maximum Harvest

Each solar panel connects to its own SunXtractor, which independently tracks the maximum power point (MPPT) and charges a common battery bank.

This distributed architecture ensures every panel operates at its optimal point, delivering more energy throughout the day — especially in real-world conditions like partial shading and cloudy skies.

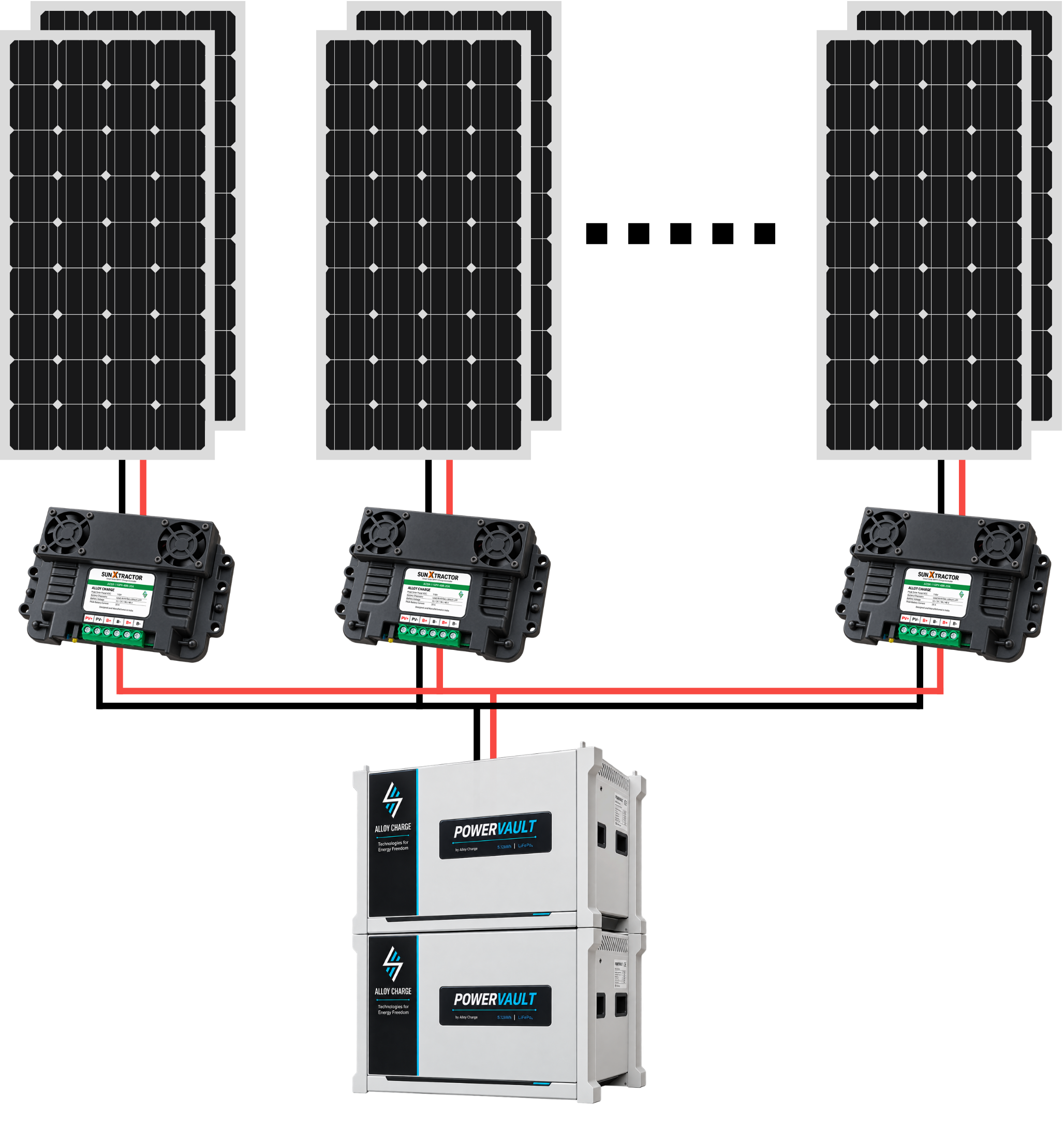

SunXtractor distributed MPPT system — solar panels, charge controllers, and PowerVault batteries

Handles Real-World Conditions Better

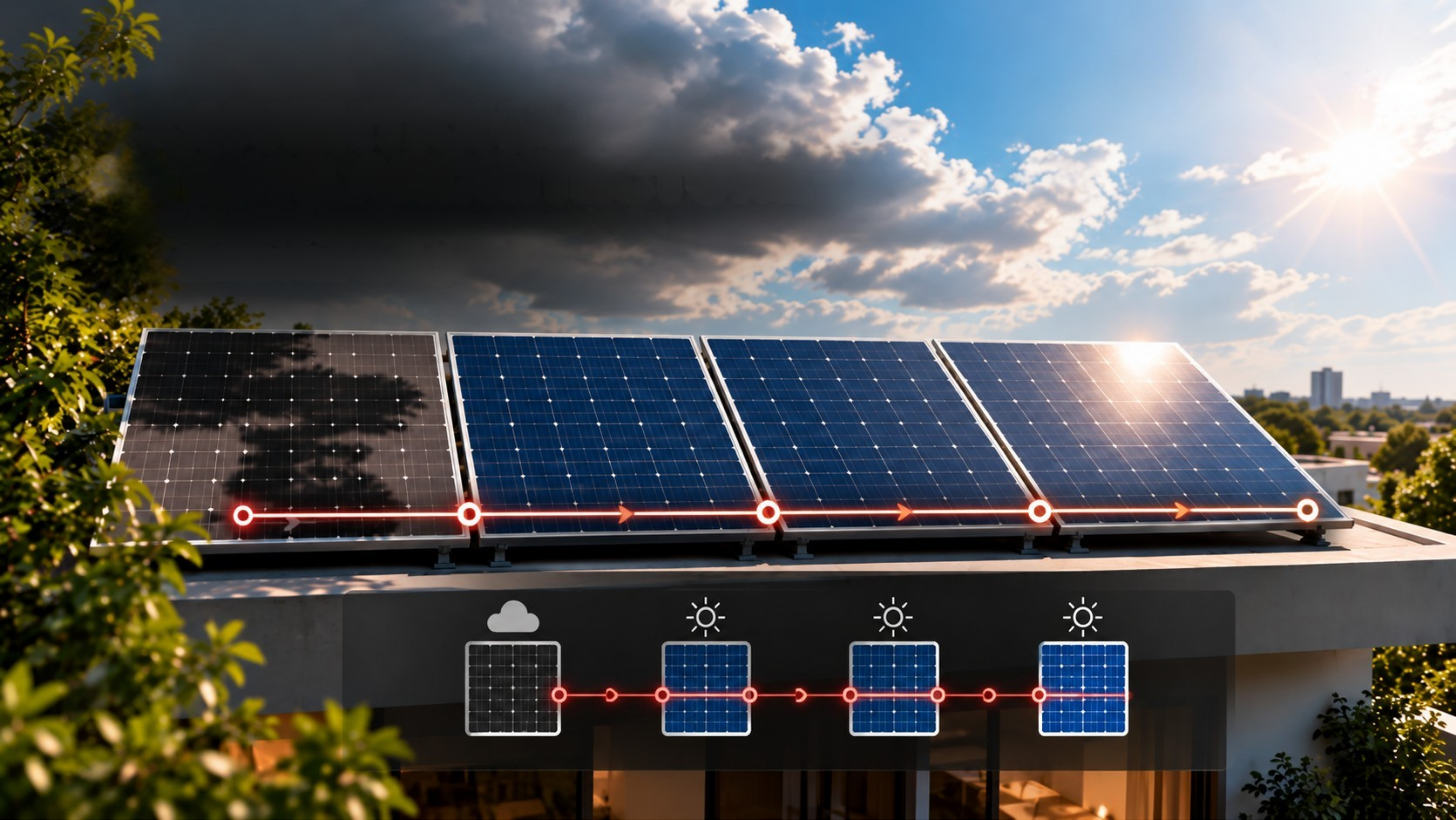

CONVENTIONAL
STRING ARCHITECTURE

Conventional string solar architecture diagram

One shaded section can reduce the output of the entire string

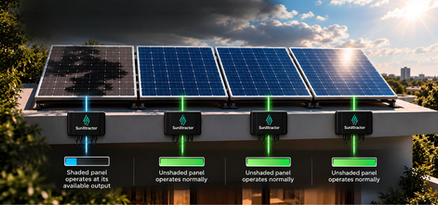

DISTRIBUTED
SUNXTRACTOR ARCHITECTURE

Each PV section operates according to the conditions available to it.

More Power
Even on Cloudy Days

Advanced MPPT technology extracts usable energy even in diffused or low-light conditions, helping you generate more power when it matters.

Specifications

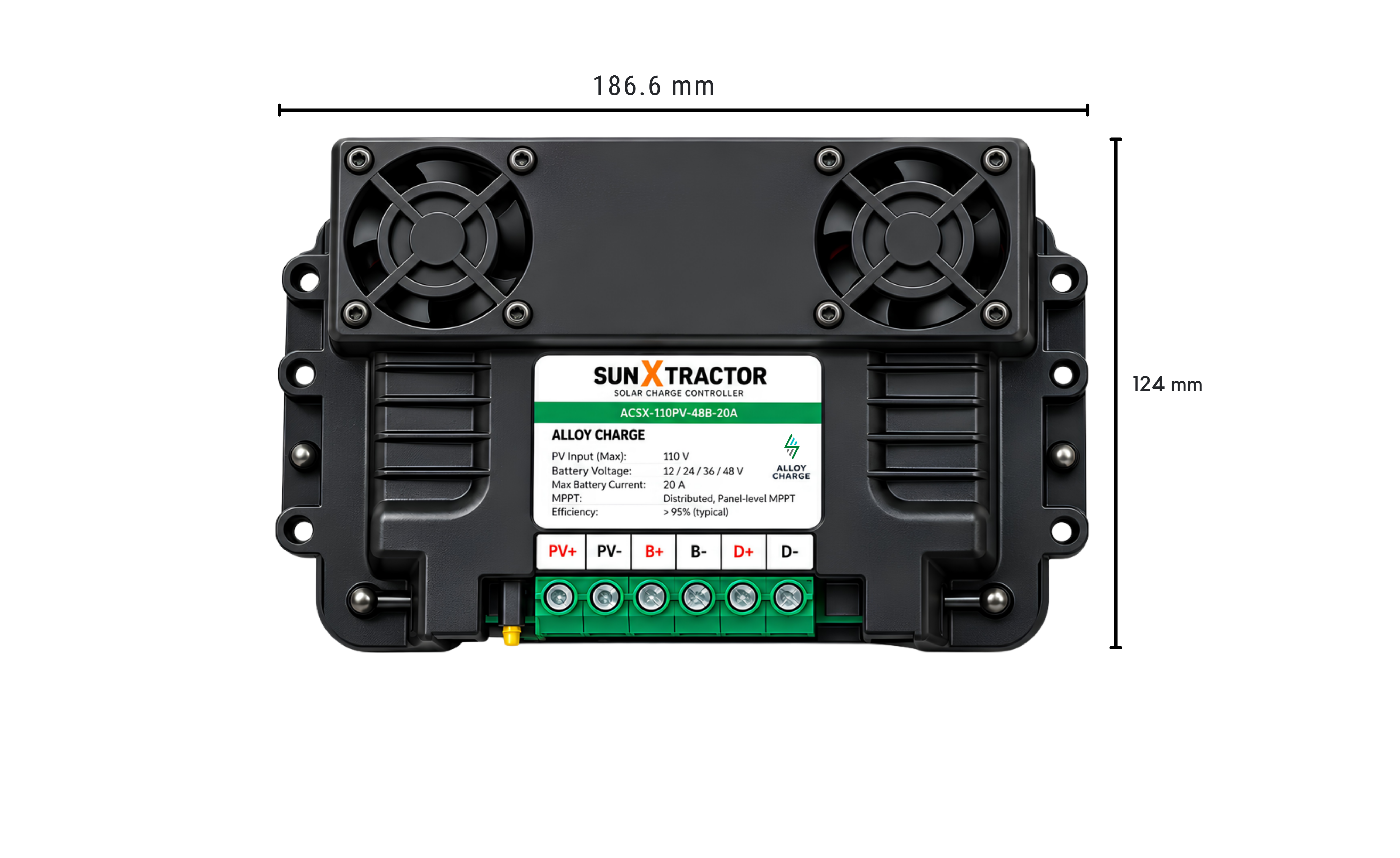

Specifications based on the ACSX-110PV-48B-20A model. Contact us for other configurations.
Parameter	Specification
Model	ACSX-110PV-48B-20A
Peak Solar Panel VOC	110 V
Battery Chemistry	Lead Acid / Gel, Lithium LFP
Battery Voltage	12 / 24 / 36 / 48 V
Peak Battery Current	20 A
MPPT	Distributed, Panel-level
Efficiency	> 96%
Protections	Over-voltage, Over-current, Reverse Polarity, Thermal
Cooling	Forced Air (Dual Fans)
Mounting	Wall Mount / Surface Mount
Designed & Manufactured	In India
