What is the FreedomVolt inverter?

FreedomVolt is an 8kW grid-independent pure sine wave inverter by Alloy Charge Technologies. It converts 48V DC battery power to clean, stable 230V AC power for off-grid homes, farms, remote properties, and campervans.

What is the surge capacity of the FreedomVolt inverter?

FreedomVolt can handle a surge power of 16,000W for short durations, allowing it to start demanding loads like pumps, motors, and compressors.

What battery voltage does FreedomVolt require?

FreedomVolt operates on a 48V DC input with a working voltage range of 40–62 VDC, making it compatible with standard 48V battery banks including LFP (Lithium Iron Phosphate) batteries like the Alloy Charge PowerVault.

Is the FreedomVolt inverter suitable for sensitive electronics?

Yes. FreedomVolt outputs a pure sine wave with ≤3% total harmonic distortion (THD), making it safe for all electronics including computers, medical equipment, and home appliances.

G R I D I N D E P E N D E N T I N V E R T E R

FREEDOMVOLT

Grid Independent
Inverter

Reliable AC power from your solar and battery, anywhere.

Reliable
Power Supply

Pure Sine
Wave Output

Advanced
Protections

High Efficiency
& High Power

FreedomVolt Grid-Independent Pure Sine Wave Inverter

K E Y A D V A N T A G E S

Engineered for
Reliable, Independent Power

Pure Sine Wave Output

Clean and stable AC power for all your appliances, including sensitive electronics.

Reliable & Safe

Advanced protections against over-load, short-circuit, over-temperature and more.

High Efficiency

Converts more of your stored energy to usable power, reducing losses.

Scalable Power Options

Available in multiple variants to match your energy needs.

H O W I T W O R K S

Converts Stored Solar
Energy to Reliable AC Power

FreedomVolt takes DC power from your battery bank and converts it into clean, stable 230 V AC power for your home, office or remote site.

It works independently of the grid, delivering reliable power to run your essential and high-power appliances, anywhere.

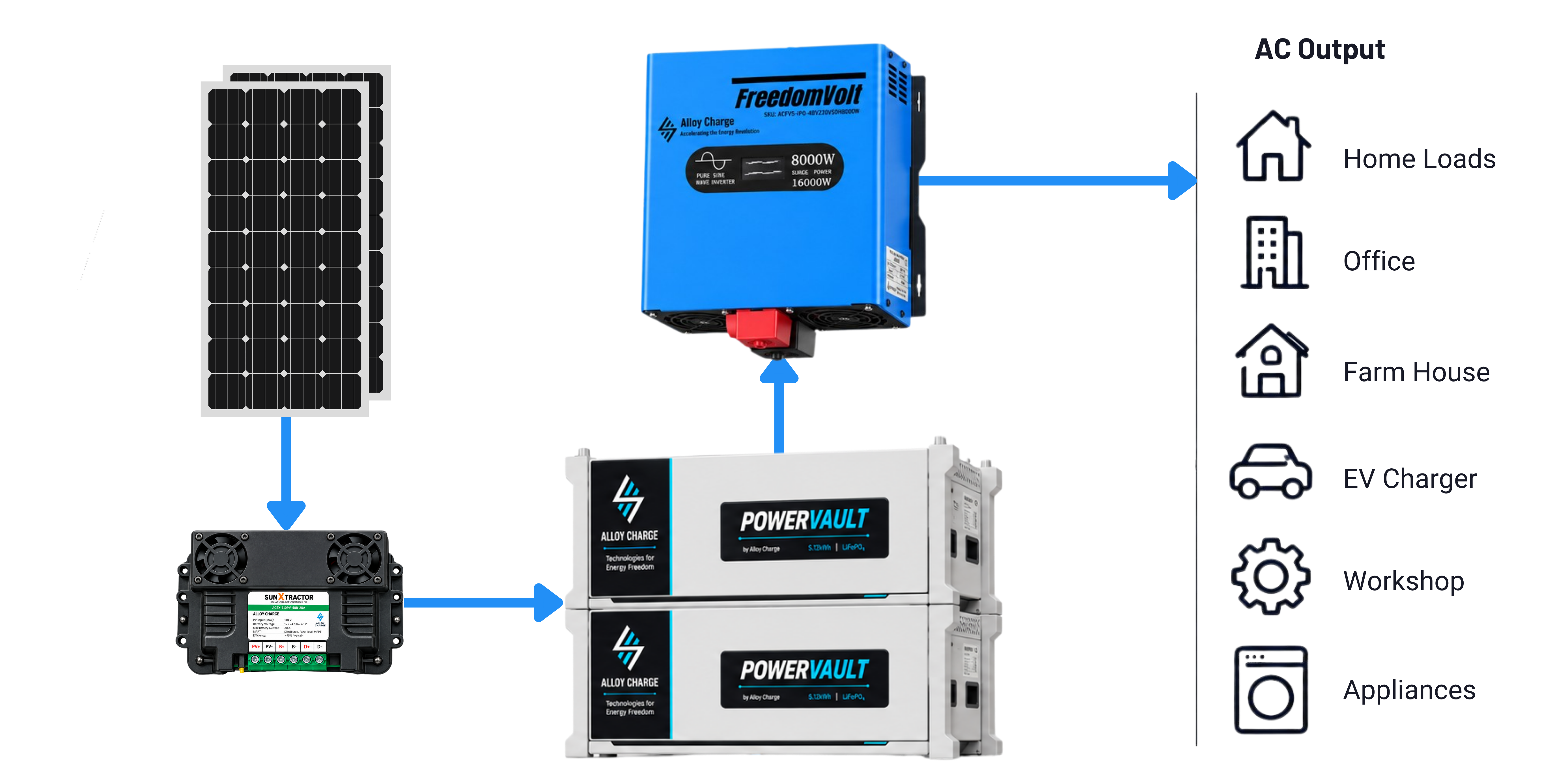

Solar system diagram — Solar Panels to SunXtractor to PowerVault to FreedomVolt 8000W to AC loads: home, office, farm, EV charger, workshop, appliances

Power Your Life
Without Limits

Reliable, clean and stable AC power for your home, office or remote site.

Built for
Real-World Use

Delivers high starting power to handle demanding loads like pumps, motors and compressors, while maintaining stable output for all your essential appliances.

Everyday
Home Living

Work From
Home / Office

Farm Houses &
Remote Properties

Campervans
& RVs

T E C H N I C A L S P E C I F I C A T I O N S

Specifications (8 kW Variant)

Specifications based on the ACFVS-1P0-48V230V50H8000W model. Contact us for other configurations.
INPUT
Parameter	Specification
Model	ACFVS-1P0-48V230V50H8000W
Rated Voltage	48 V
DC Voltage Range	40 – 62 VDC
Max Efficiency	0.92
OUTPUT
AC Voltage	230 VAC
Continuous Power	8000 W
Surge Power	16000 W
Waveform	Pure Sine Wave
Frequency	50 Hz or 60 Hz
Degree of Distortion	≤ 3%
PROTECTION
Low Voltage Alarm	42.0 ± 1 V
Low Voltage Shut Down	40.0 ± 1 V
Over Voltage Shut Down	62.0 ± 1 V
Short Circuit	Auto shut off
Over Load	Auto shut off
Over Thermal	Auto shut off
ENVIRONMENT
Working Temperature	−10°C ∼ +50°C
Working Humidity	20% ∼ 90% RH
PACKAGE
Machine Size (mm)	520 × 280 × 120
Net Weight	10.0 KG
Gross Weight	11.4 KG

FreedomVolt ACFVS-1P0-48V230V50H8000W — dimensions 520 x 280 x 120 mm

P A R T O F A C O M P L E T E S O L A R S O L U T I O N

Designed to Work Together

FreedomVolt is part of the Alloy Charge solar ecosystem, delivering a complete and reliable off-grid and grid-independent power solution.

Ready to Go Grid-Independent?

Get a free consultation and learn how FreedomVolt can power your home, farm, or installation off-grid.

Schedule Free Assessment
